Features

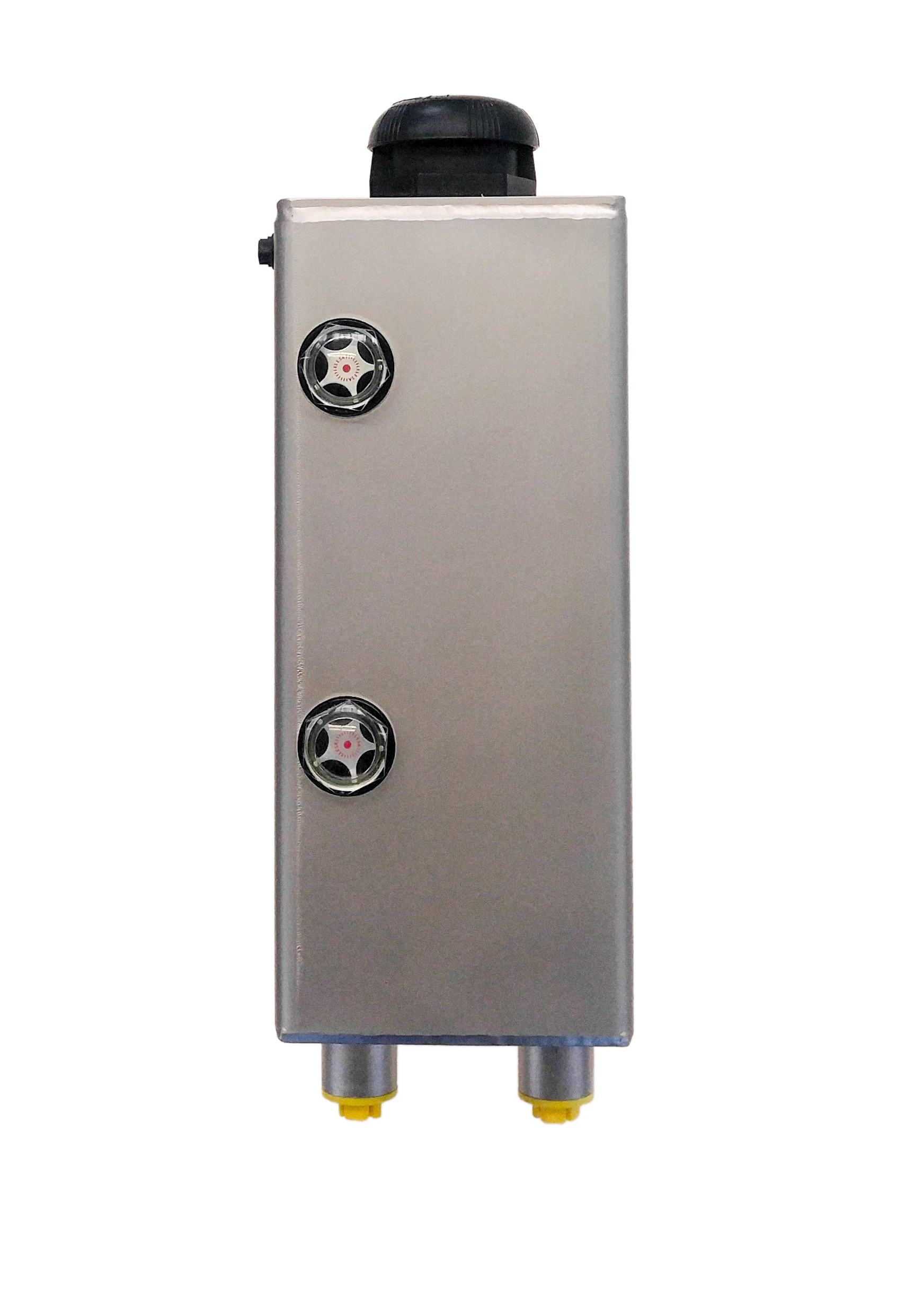

The QSS-2000 quench systems are used to supply single-action or tandem mechanical seals. They are used to store the liquid locally. The fluid exchange can be implemented through natural circulation by means of the thermosiphoneffect or through forced circulation by means of a circulating pump or pumping screw. The MIN/MAX fill level can be monitored via two sight glasses or two fill level sensors. There is a lug on the stainless steel container for fastening.

based on: API 682/ISO 21049 Plan 51

Basic tasks

• leakage compensation
• Prevent icing
• stabilize the lubricating film
• exclude air from the media in order to prevent a reaction with the air
• Prevent dry running

Recommend applications

	Chemical industry
	Food industry
	Pharmaceutical industry
